R-Value Explained: Choosing the Right Insulation for Your Garage Door
Ever opened your garage door and felt like you had stepped into an icebox or a sauna? You’re not imagining it. Many garage doors are like giant metal or wooden shells with barely any protection against the outside temperature. That’s where garage door insulation comes in. At My Cool Garage, we love helping homeowners turn their garages into comfortable, energy-efficient spaces that don’t feel like extreme weather zones.
A key factor to consider when insulating a garage door is its R-value. It might sound technical, but stick with me, by the end of this guide, you’ll know exactly what it means and why it’s crucial for your garage.
What Is R-Value and Why Does It Matter?
Let’s keep it simple. R-value is a number that tells you how well an insulation material resists the flow of heat. The higher the R-value, the better it can keep the heat inside during winter and outside during summer. Think of it as a superhero shield for your garage, defending against extreme temperatures.
For garage doors, R-values usually range from 0 for uninsulated doors to over 20 for high-end, highly insulated doors. A standard steel garage door without any insulation usually has an R-value of 0 or 1. In contrast, a polyurethane-insulated garage door can reach up to R-20. That difference can be huge when it comes to comfort, energy savings, and even noise reduction.
In simple terms, the higher the R-value, the more your garage door acts like a thermal barrier rather than just a barrier to keep the car inside.
How R-Value Affects Your Garage’s Comfort
You might think that a garage door is just for opening and closing, but it can actually have a big impact on your home’s overall comfort and energy efficiency. Here’s how:
- Temperature Control: Higher R-values mean better insulation, which keeps your garage warmer in the winter and cooler in the summer. If you’ve ever had your garage feel like Antarctica while getting your car in the morning, you know the value of proper insulation.
- Energy Efficiency: According to the U.S. Department of Energy, insulating an attached garage can reduce energy costs by up to 15 percent because it prevents heat transfer to the rest of your home. That’s money staying in your wallet instead of disappearing into thin air.
- Noise Reduction: Garage insulation also acts as a sound buffer. If your street is busy, an insulated garage door can reduce noise by several decibels, giving you a quieter space inside your garage.
- Durability and Protection: Extreme temperature swings can warp metal doors and damage wooden doors. Insulation acts as a protective layer that helps extend the life of your garage door.
Basically, it’s like giving your garage a comfy jacket that also happens to be energy-smart.
Choosing the Right Insulation for Your Garage Door
Not every garage is created equal. Detached garages, garages attached to homes, and garages with living spaces above them all have different insulation needs. That’s why choosing the right R-value is important. Here’s a helpful guide:
| Garage Type | Recommended R-Value |
|---|---|
| Detached, non-heated | 0-6 |
| Attached, non-heated | 7-9 |
| Heated garage | 10-13 |
| Garage with living space above | 14+ |
If your garage is attached to your home, you want at least R-7. If it’s a space where you spend a lot of time, like a home gym or workshop, you’ll want to aim for R-10 or higher. More insulation usually means better comfort, but it also costs more. The trick is to find a balance between comfort and budget.

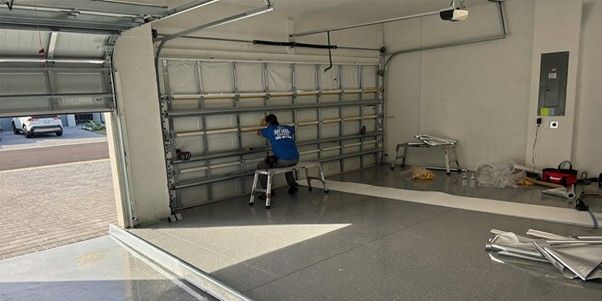

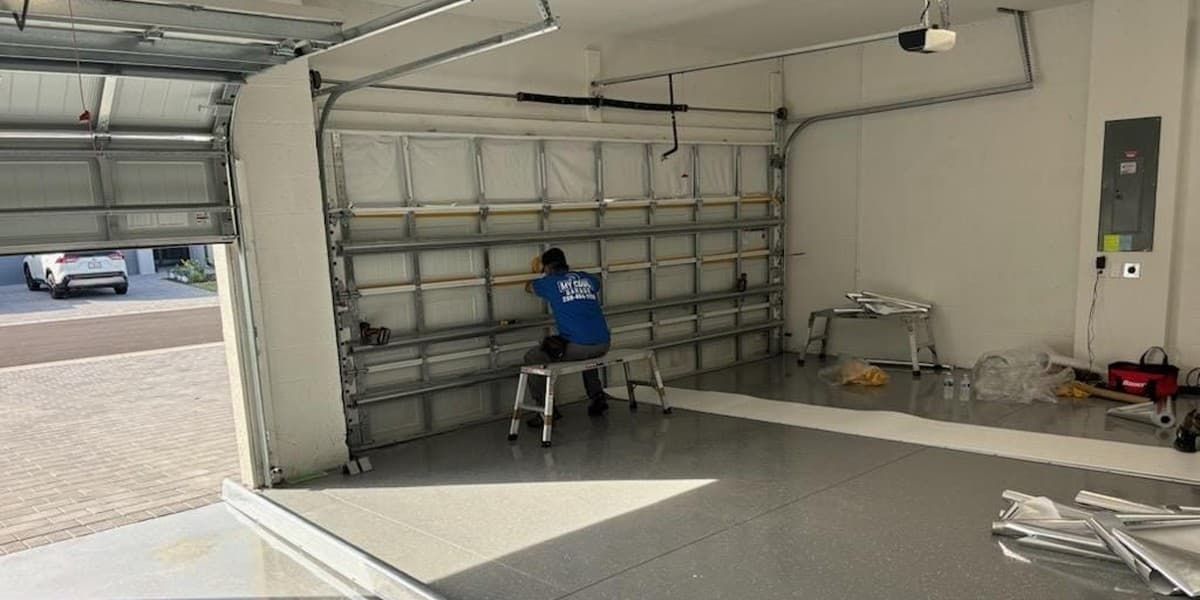

Our Two-Layer Insulation Process
At My Cool Garage, we have a method that goes beyond simply adding a sheet of insulation. We like to do it right with a two-layer process:

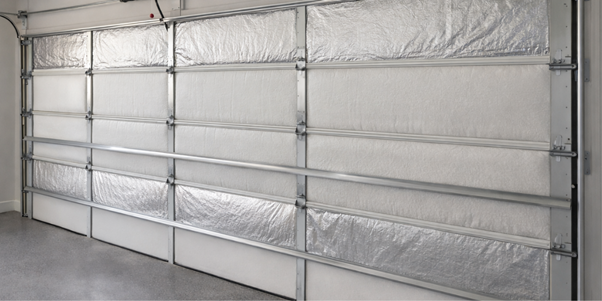

- First Layer: A radiant barrier applied directly to the inside of the garage door. This layer blocks heat from coming in or going out.
- Second Layer: A second panel-by-panel layer that creates an air pocket between the two layers. This traps heat and further increases energy efficiency.
This approach helps block up to 97 percent of radiant heat, keeping your garage at a more consistent temperature year-round. The best part? It works on both new and existing doors.
Comparing Insulation Materials
Different insulation materials have different R-values and costs. Here’s a simple breakdown:
| Material | R-Value per Inch |
|---|---|
| Fiberglass | 2.9–3.8 |
| Polystyrene | 3.8–5 |
| Polyurethane | 5.5–6.5 |
| Vacuum Panels | Up to 45 |
Fiberglass is inexpensive and widely used, but polyurethane gives the highest R-value per inch, which makes it ideal if space is limited but you still want maximum efficiency. Vacuum panels are super high-tech, but they’re expensive and usually overkill for a residential garage.
To Conclude
The U.S. insulation market was valued at around $12.5 billion in 2023 and is expected to grow steadily at about 6.4% each year until 2030. Stricter energy-saving rules across the country are driving this growth. Adding insulation to homes can cut energy use and costs by up to 20%. Because of this, more people are choosing to upgrade or re-insulate their home, which is helping the market grow even more. ( source).
At My Cool Garage, we take pride in turning ordinary garages into comfortable, energy-efficient spaces. Whether you want to reduce your heating bill, enjoy a quieter garage, or simply make it a nicer place to work, the right insulation can make a huge difference. Give us a call, and we’ll help you choose the perfect solution for your garage door.
People Also Ask
1. Which R-value is ideal for a garage door?
For most homeowners, an R-value of 10–13 is ideal. If your garage is attached or has living space above it, consider going 14 or higher. This ensures your garage stays comfortable year-round and prevents energy loss from affecting the rest of your home.
2. Can I insulate my existing garage door?
Yes, many people retrofit insulation into their existing doors. Our two-layer method works perfectly for upgrading older doors. This provides an easy way to improve comfort and save energy without needing to replace the whole garage door.
3. How long does garage door insulation last?
With proper installation, insulation can last 20 years or more while maintaining its effectiveness. Simple inspections and small maintenance tasks can help keep it working effectively for many years.
4. Will insulation reduce noise?
Absolutely. Insulated doors dampen external sounds and reduce echoes inside your garage. This makes your garage a much quieter and more pleasant space for working or relaxing.
5. Is polyurethane insulation worth the investment?
Yes, if you want maximum comfort and energy savings. Its higher R-value often pays for itself over time. Plus, it adds long-term value to your home by improving overall energy efficiency.
6. How can I tell if my garage door is insulated?
Check for a foam core or look for an R-value label. If you’re uncertain, having a professional take a look can provide a definite answer. Doing so ensures you choose the right insulation for optimal performance and comfort.
